Huepar 12 Lines 3D Cross Line Self-Leveling Laser Level 3 x 360 Green Beam Laser Tool With 2pcs Li-ion Battery & Portable Bag - 503CG

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and convenience.

503CG 3 x 360 Green Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

• Laser Wavelength: 505-520nm

• Horizontal/Vertical Accuracy: +/- 1/13 inch at 33Ft.

• Leveling/Compensation Range: 4°+/- 1°

• Working Distance (Line): 65Ft (100 LUX), 200Ft. with Huepar Laser Receiver LR-6RG&LR-5RG

• Operating Time: 6 hours continual use with all laser beams on

• Power Source: 7.4V 2600mAh Li-ion battery

• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

• Operation Temperature Range: 14℉ ~ 104℉ (-10℃~ 40℃)

• Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)

• Mount Size: 1/4"-20 and 5/8"-11

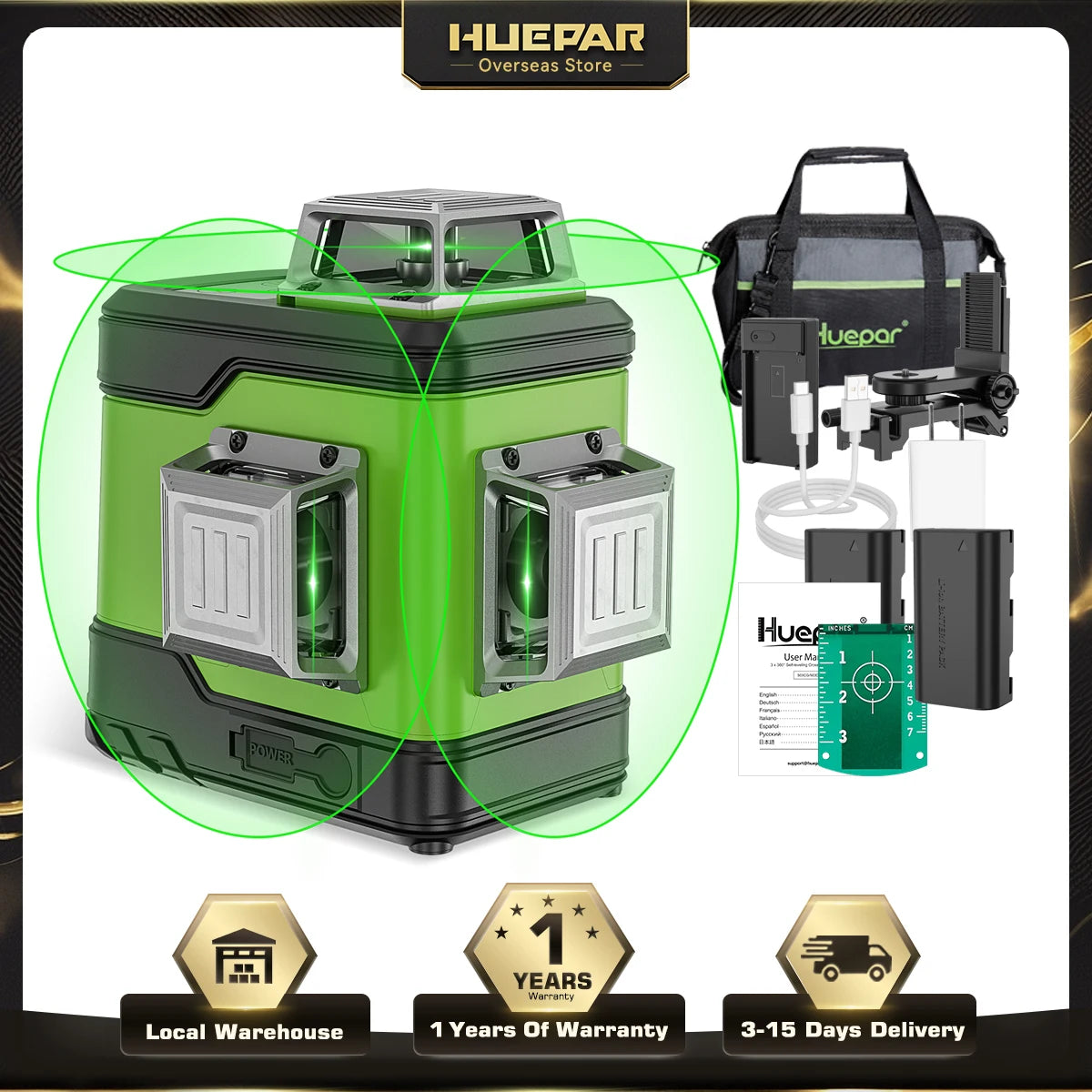

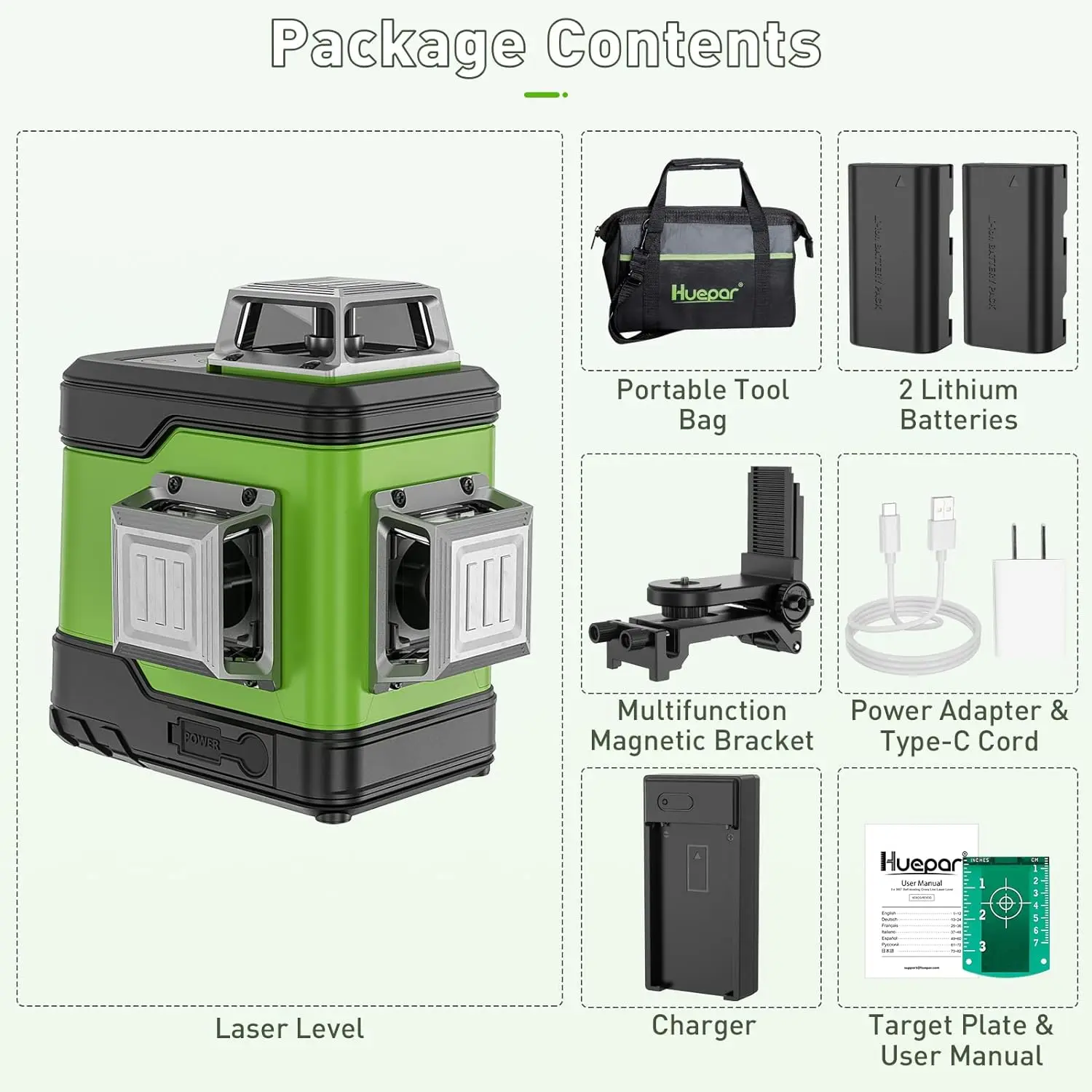

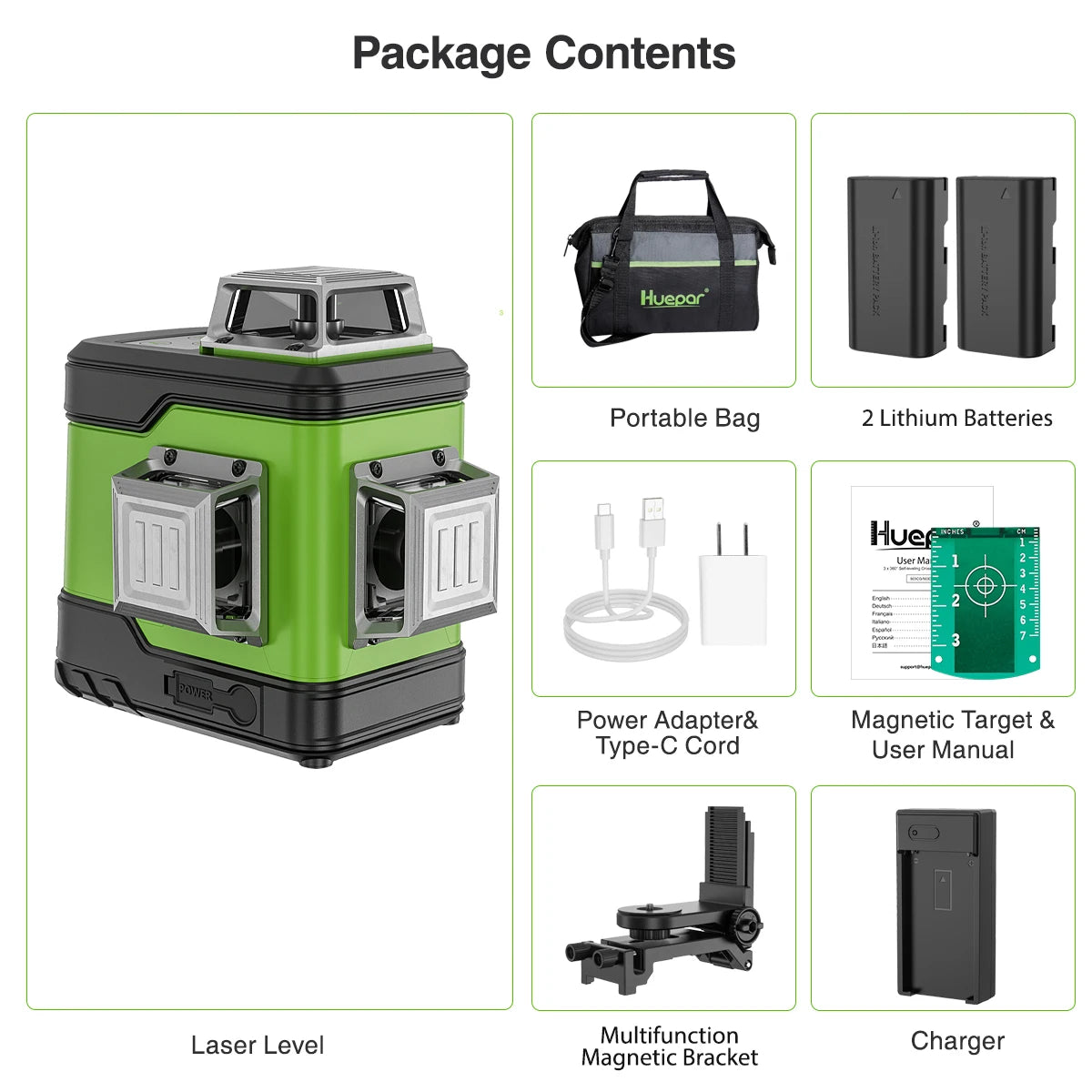

• 1 x Huepar 503CG 3 x 360° Laser Level
• 2 x Rechargeable 7.4V 2600mAh Li-ion Batteries
• 1 x Battery Charger
• 1 x 360° Magnetic Bracket
• 1 x Type-C Power Cord&1 x Power Adapter
• 1 x Pouch Bag for Laser Level
• 1 x Portable Tool Bag
• 1 x Laser Target Plate
• 1 x User Manual

• This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes - one horizontal and two vertical lines.

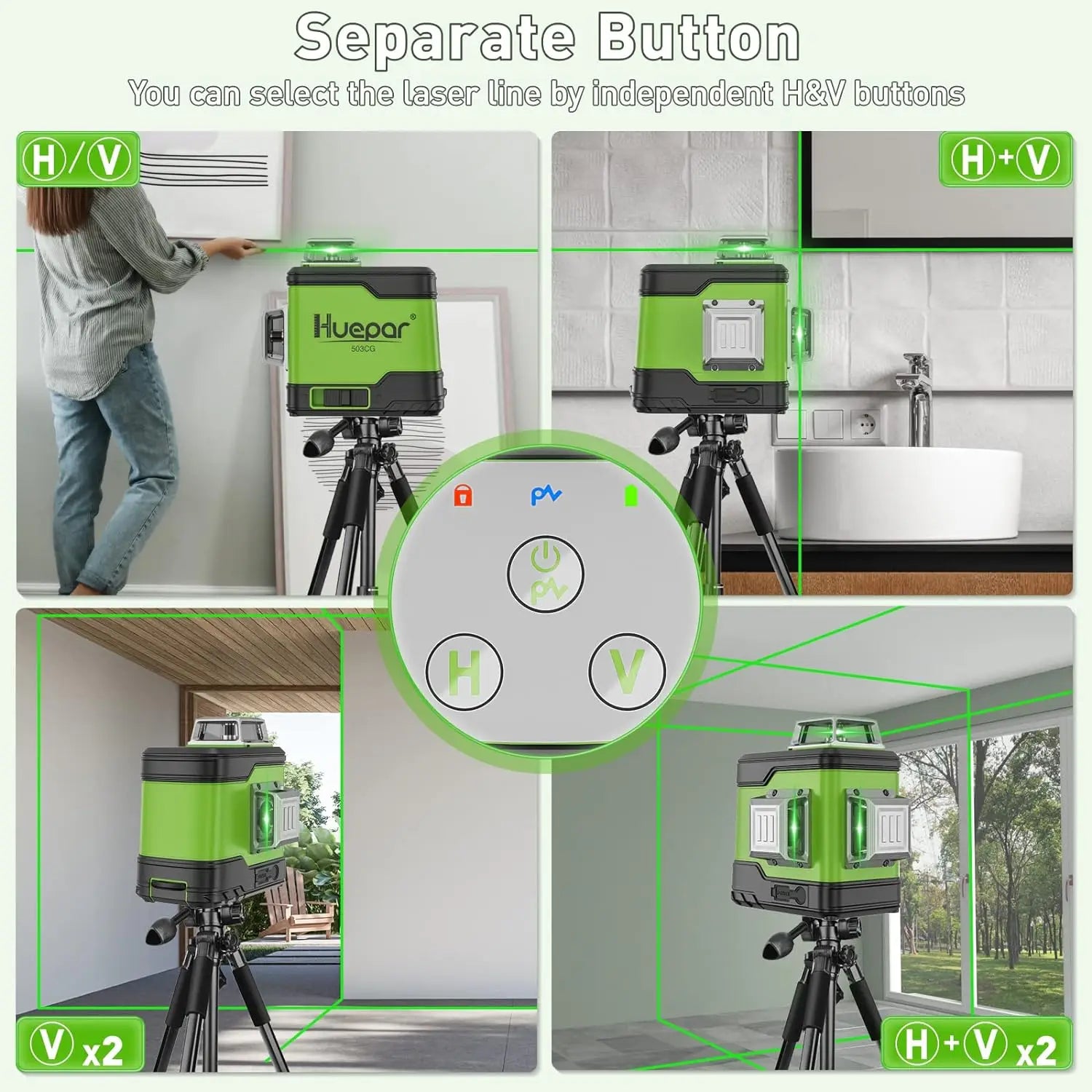

• The horizontal line and vertical lines can be selected individually by separate H and V button on the keypad.
• In manual mode, when all laser lines are switched OFF, the laser tool will automatically turn off after about 4 minutes of inactivity.

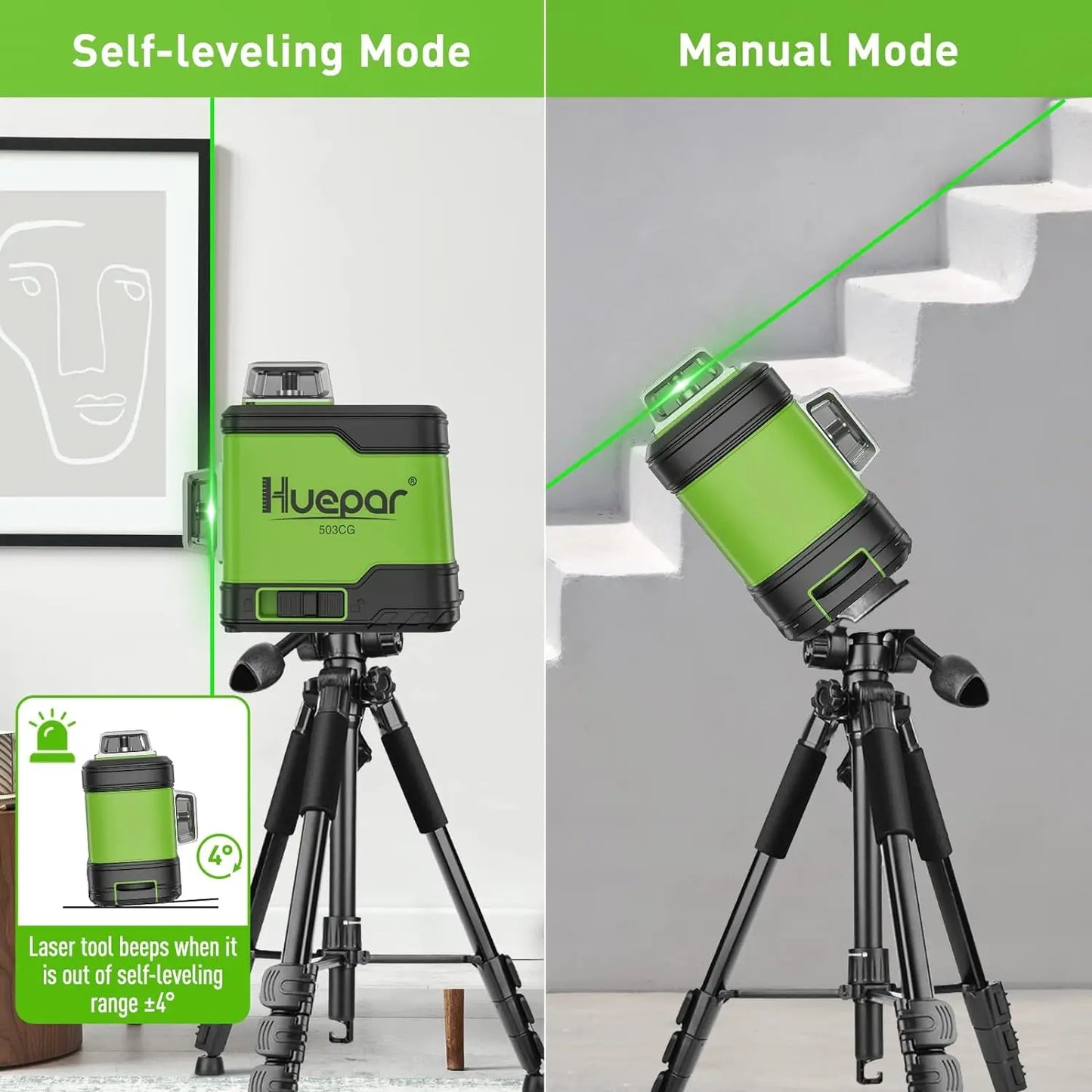

• Self-leveling Mode:

• Manual / Tilt Mode:

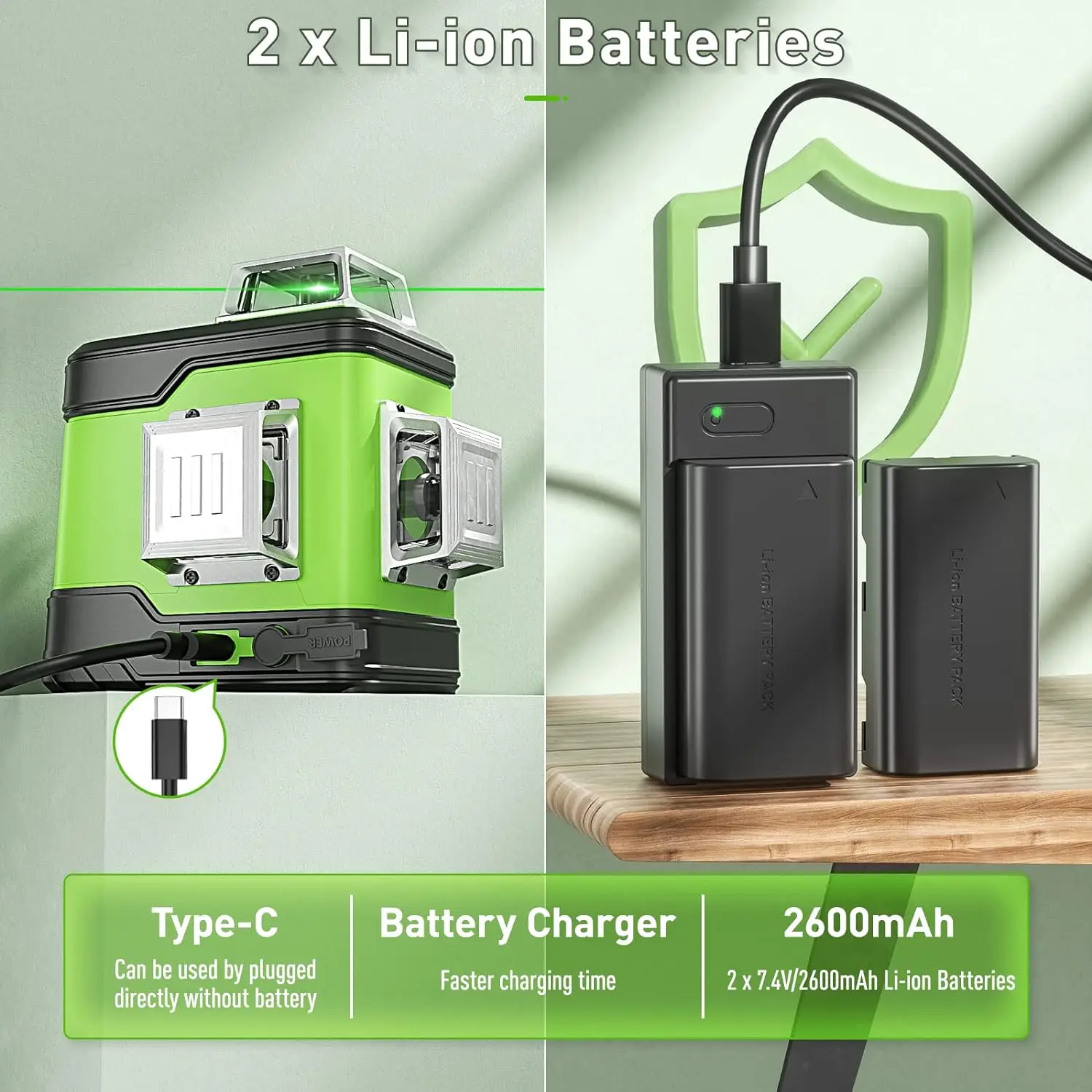

• This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery.
• An extra battery is included in the package for backup.
• The level tool can be used at job site by plugged in directly when take out the battery.
• Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter.
• With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

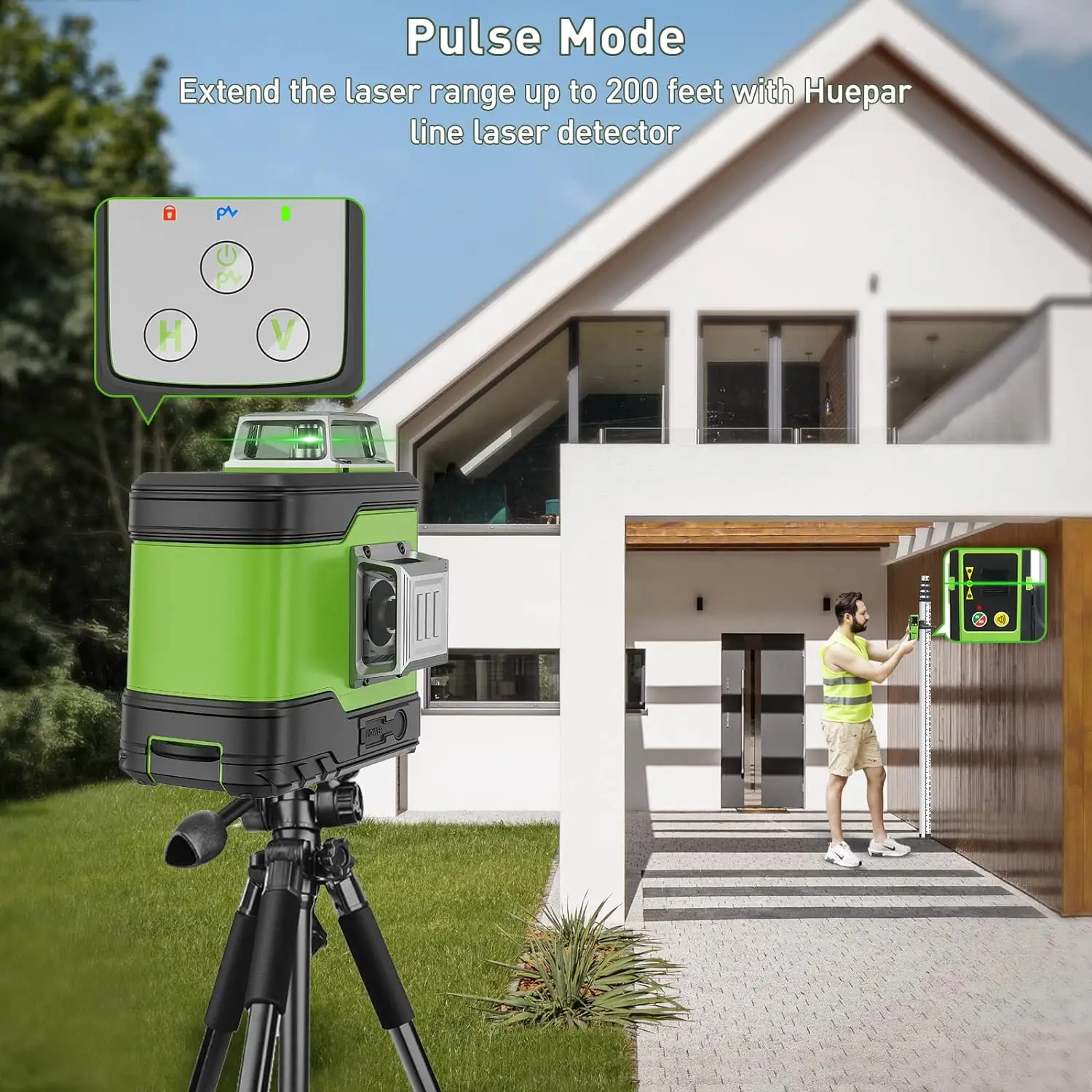

• Turn ON the pulse mode: After power ON, short press the pulse mode button to switch ON/OFF the pulse mode.
• Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector (ASIN: B07L6FP48S).
• When the pulse mode is activated, the laser beams will become dimmer.
• It is compatible with Huepar LR-6RG / LR-5RG Line Laser Detector only.
• Keep the pulse mode on when using with a receiver.

• Allows for attachment to metal surfaces and enables to turn the laser level around at 360 degree.
• The bracket offers ability to mount to any object up to 0.47" thick.
• The fine-tuning knob with lock on the bracket help adjust and lock the height within 3.74".
• 1/4"-20 and 5/8"-11 female thread on the laser tool as well as the 5/8"-11 mounting thread on the bracket to suit for standard tripod or laser mounting pole.

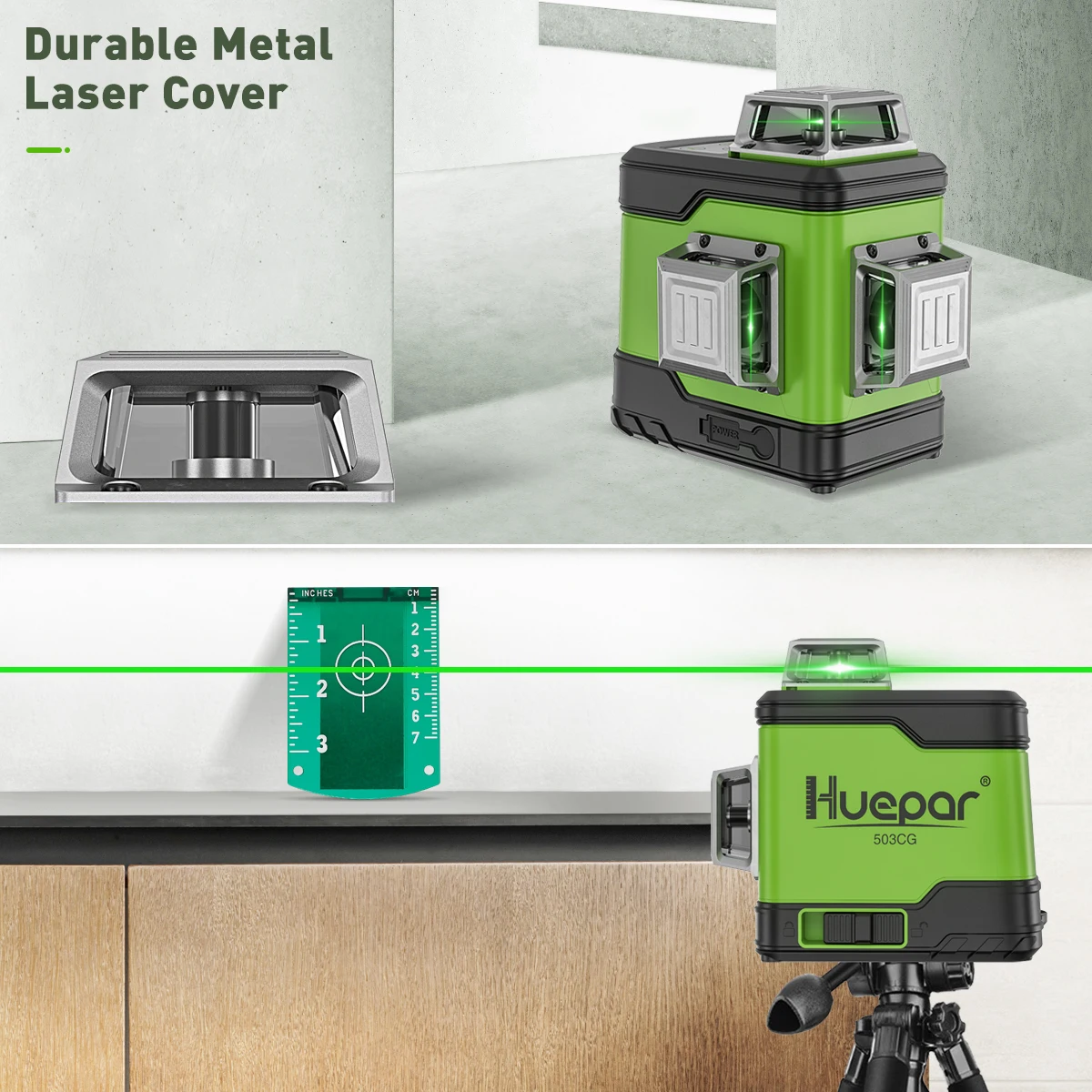

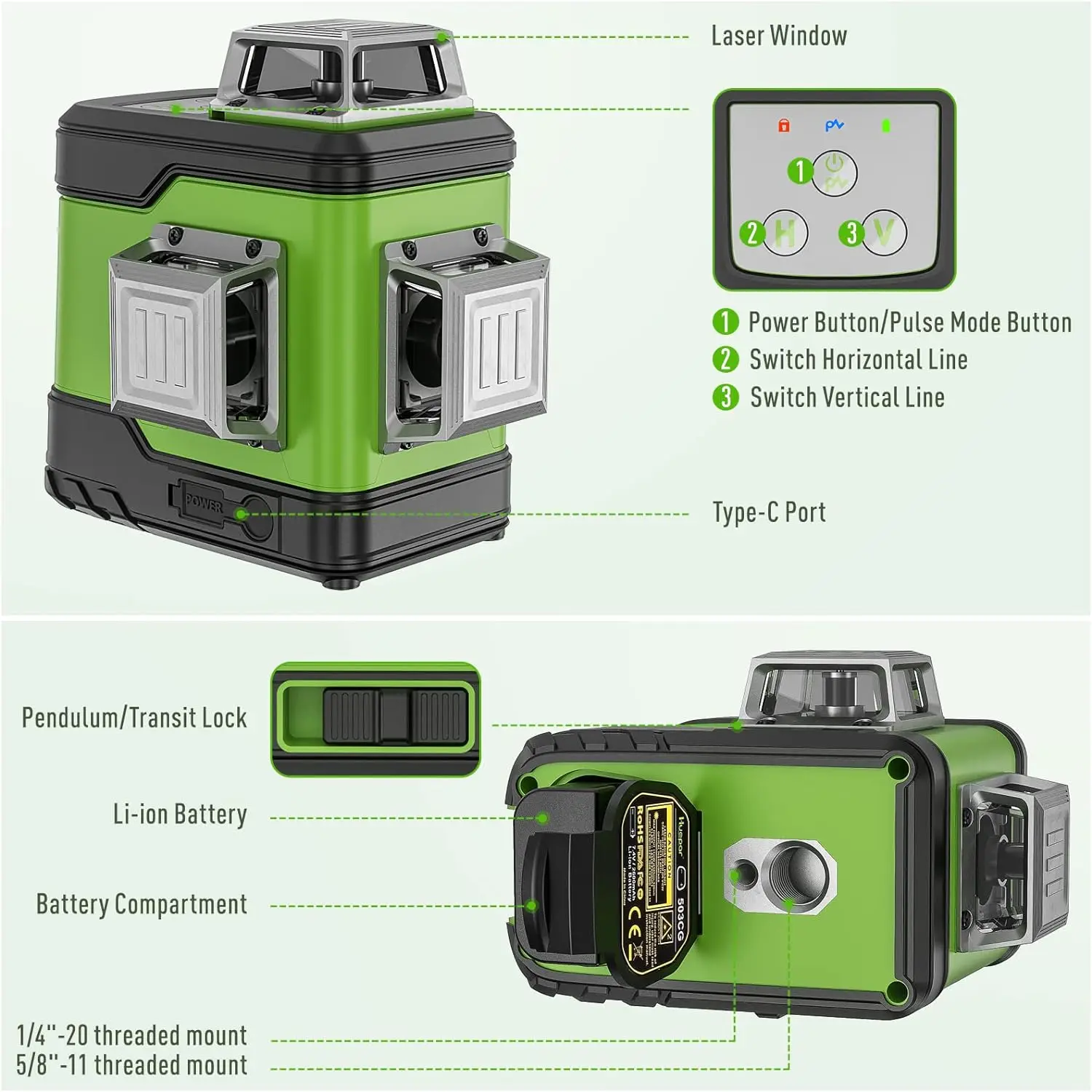

• Metal Top Design: Over-molded metal laser window withstands hazardous job site conditions and can be removed and replaced with a screwdriver.
• Green Target Plate: Increases the visibility of the laser beam.
• The kit comes with a small pouch bag for the laser level, which is dust and scratch-proof to some extent, bringing much more convenient to carry and store the laser tool.
• IP54 water/dust resistance ensures you work well in hazardous working conditions.

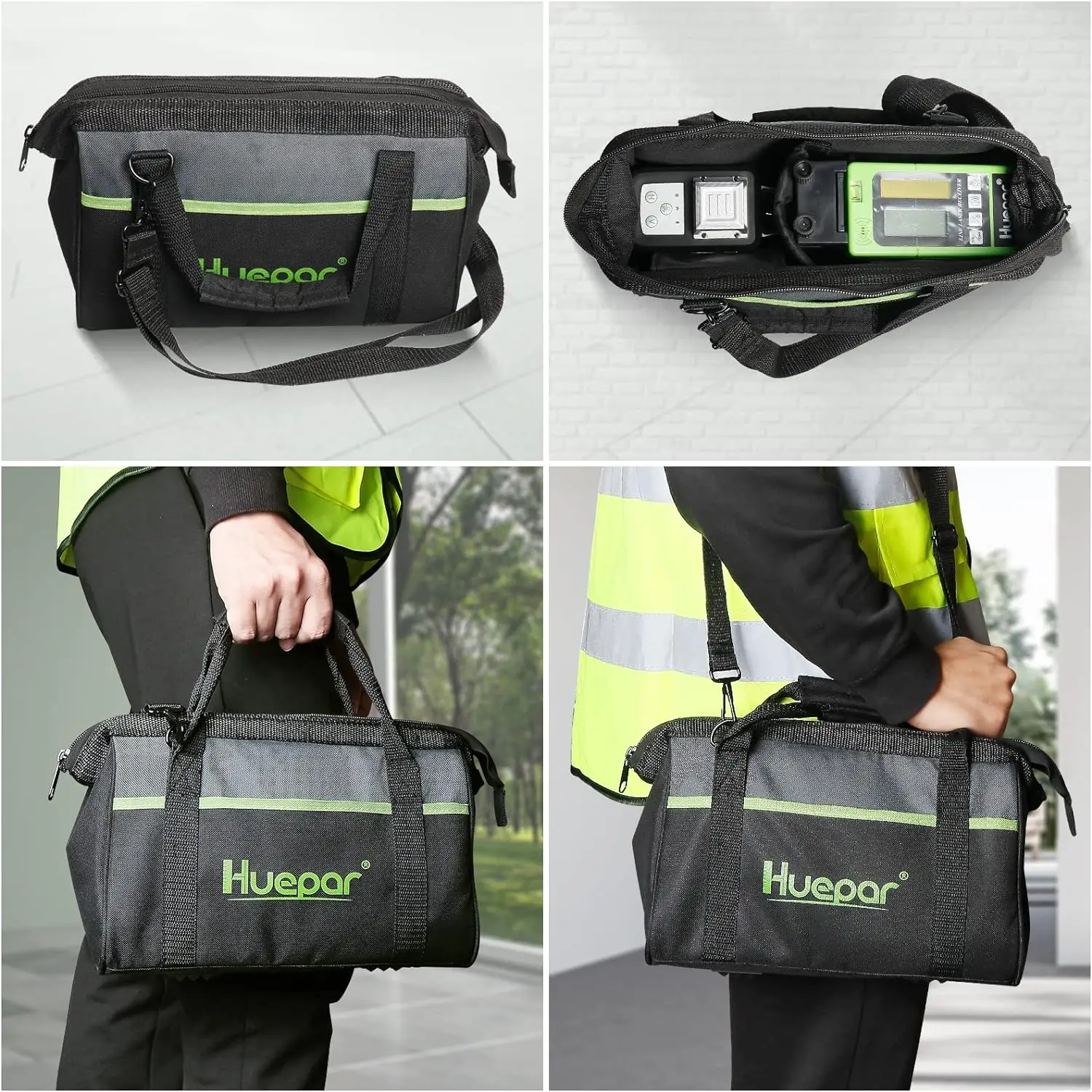

Portable Tool Bag

• The portable tool bag features a pop-open design and convenient interior compartments to allow for easy access to tool and parts.

• Two interior flap covered pockets with loop closure bring much more convenience.

• The tool bag comes with the extra padded handle and adjustable shoulder strap that adds extra comfort when carrying the tool and allow for safe and secure transit.

The laser tool can help you easier on Home Decoration, Partition Wall Construction,

Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation, Pictures Hanging Design, Laying out Tile,

Windows Construction etc.
